CAI-203 40Mhz Process Control Computer Board Specifications

CAI-203 Specifications

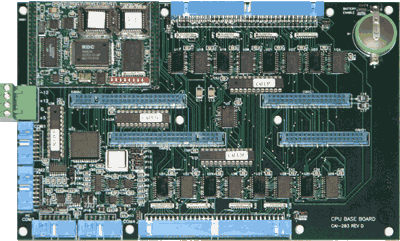

CAI-203 40Mhz Process Control Computer Board

The CAI-203 is a powerful x86 programmable single board computer with 64 bits of high power I/O, 4 RS232/485 Comm ports, 4 iSBX ports and 512 Kbytes of battery backed ram. The board is easily programmed using C/C++. The CAI-203 is designed to be used as an embedded controller for industrial and process control applications.

	CAI-203
Processor	Intel 80C186EB - 16-bit, 40Mhz
Onboard Memory	512K bytes, battery backed
COM Ports	4 - RS-232/485 serial ports, up to 115K Baud
I/O Ports	4 - iSBX Ports
Control Channels	64 programmable control channels 0 - 15 volts, 0.1 amp sink/source
Development Software	Paradigm C++ development environment
Boot Software	Stored in flash memory Easily updated through PC serial port.
Fail Safe Features	Battery backed memory - prevents data loss during power outages. Built-in watchdog timer restarts system in the event of power glitches.
Size	7" x 9"
Reliable	Field proven - hundreds in use around the world!
Expansion Boards	CAI-201 -- 16 channel thermocouple interface CAI-210 -- 32 channel analog input/output CAI-212 -- 32 bit programmable parallel I/O CAI-216 -- 16 channel differential temperature sensor inputs
