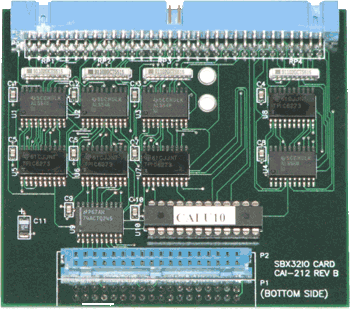

The CAI-212 32-bit Programmable
Parallel Card provides 32 digital input/output
channels. This card provides expansion capabilities
to the CAI-203 enabling system
designers to provide an additional 32 channels of
programmable I/O. Each output is capable of
sourcing or sinking 0.1 amp of current at up to
15V.
The CAI-212 is iSBX compatible
and designed to work with the CAI-203. I/O lines
can easily be connected utilizing the on-board 64
position ribbon connector. The 64 position ribbon
cable provides the same pin-out as Opto-22 style I/O
racks. Two CAI-212 can be
stacked on top of one another with a ½” clearance
between cards.
|
